CHOSO COB1LE-40 C40 1P+N RCBO Residual Current Circuit Breaker with Overcurrent Protection

Discover the CHOSO COB1LE-40 C40 1P+N RCBO: reliable residual current circuit breaker with overcurrent protection for enhanced electrical safety

Share to:

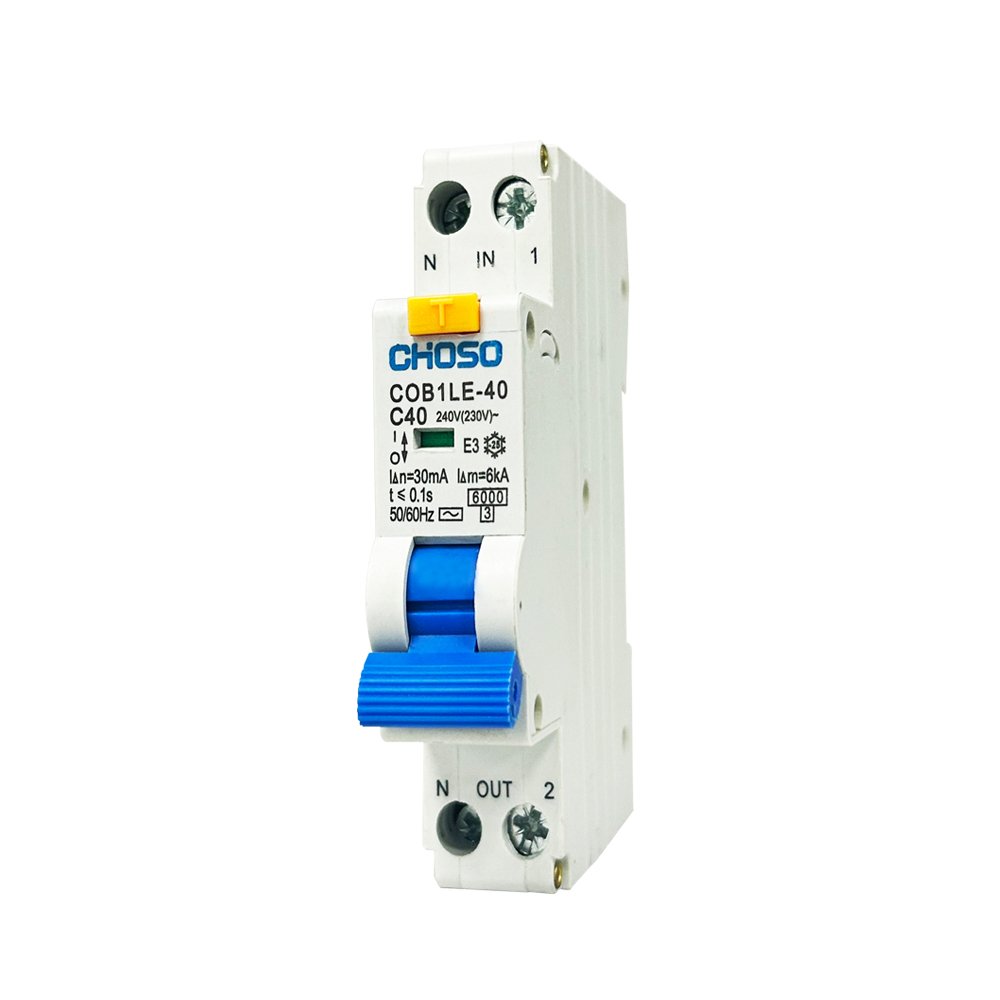

CHOSO COB1LE-40 C40 1P+N RCBO Residual Current Circuit Breaker with Overcurrent Protection

The COB1LE-40 RCCB provides reliable leakage protection for residential and small commercial applications, featuring 40A rated current, 240V~ voltage, 30mA residual operating current, and ≤0.1s tripping time to prevent electric shock and fire hazards. Compliant with IEC/EN61008-1 standards, it offers 6kA short-circuit withstand capacity, clear terminal markings for easy wiring, and 35mm DIN rail mounting for quick installation.

Product Details

Safety & Performance Advantages

Ultra-Sensitive Leakage Protection: 30mA rated residual operating current with ≤0.1s tripping time, instantly preventing electric shocks and fire hazards.

High Breaking Capacity: 6kA breaking capacity, compliant with IEC/EN61008-1 standards for reliable short-circuit protection.

Robust Build: High-grade flame-retardant insulating shell ensures long-term durability.

Product Display



User-Friendly & Versatile Design

Wide Application

40A rated current with 230V~/240V~ voltage options, suitable for residential lighting, appliances, and small commercial use.

Easy Installation

Clear terminal markings (N-IN / N-OUT) and 35mm DIN rail mounting simplify setup.

Simple Operation

Test button allows for monthly functionality checks without technical expertise.

Request Quote

Tell us your specifications, quantity, or application scenario and we will reply with a tailored quote.
