RMMQ1 Series 380V 40A 100A Motor Protection Circuit Breaker PFP-1

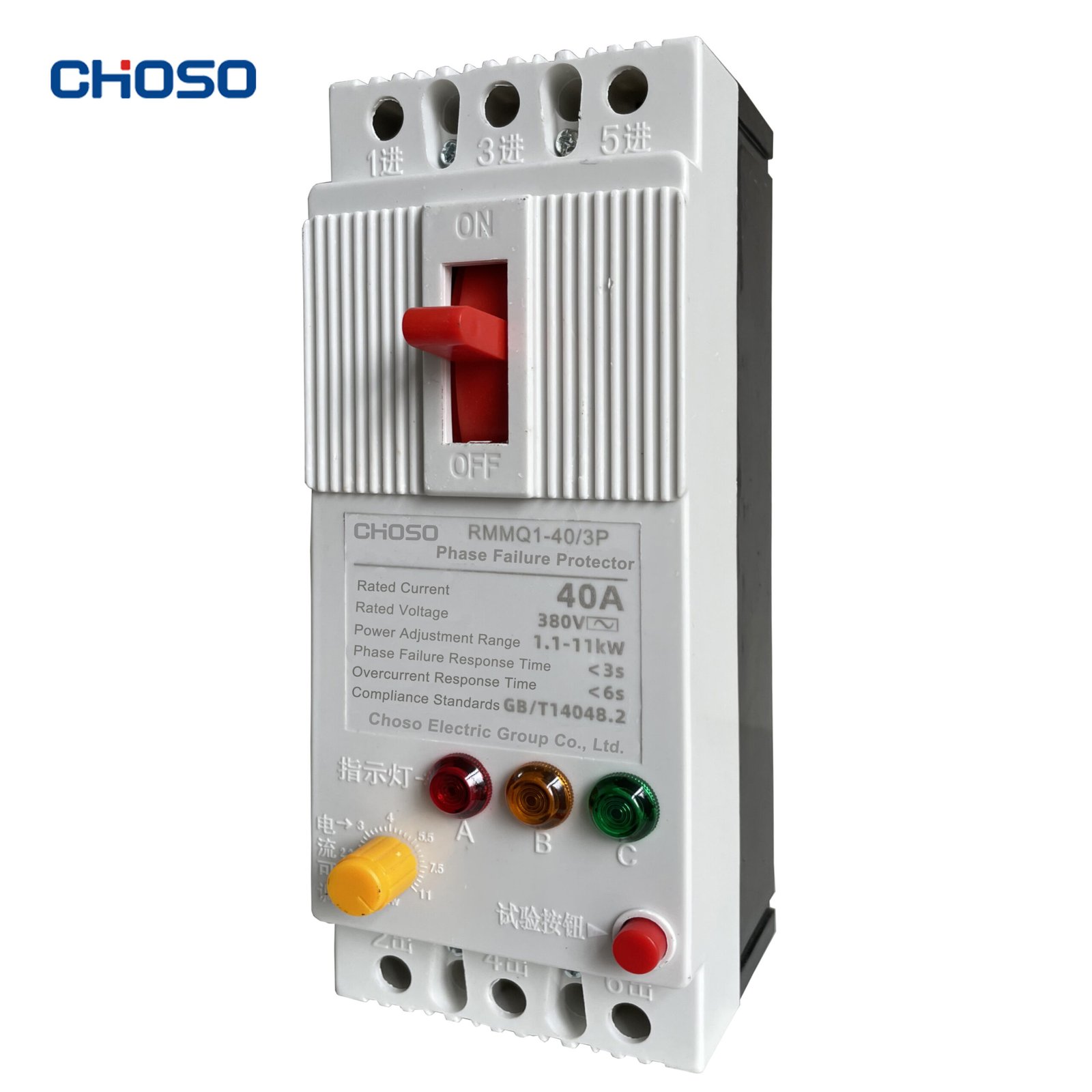

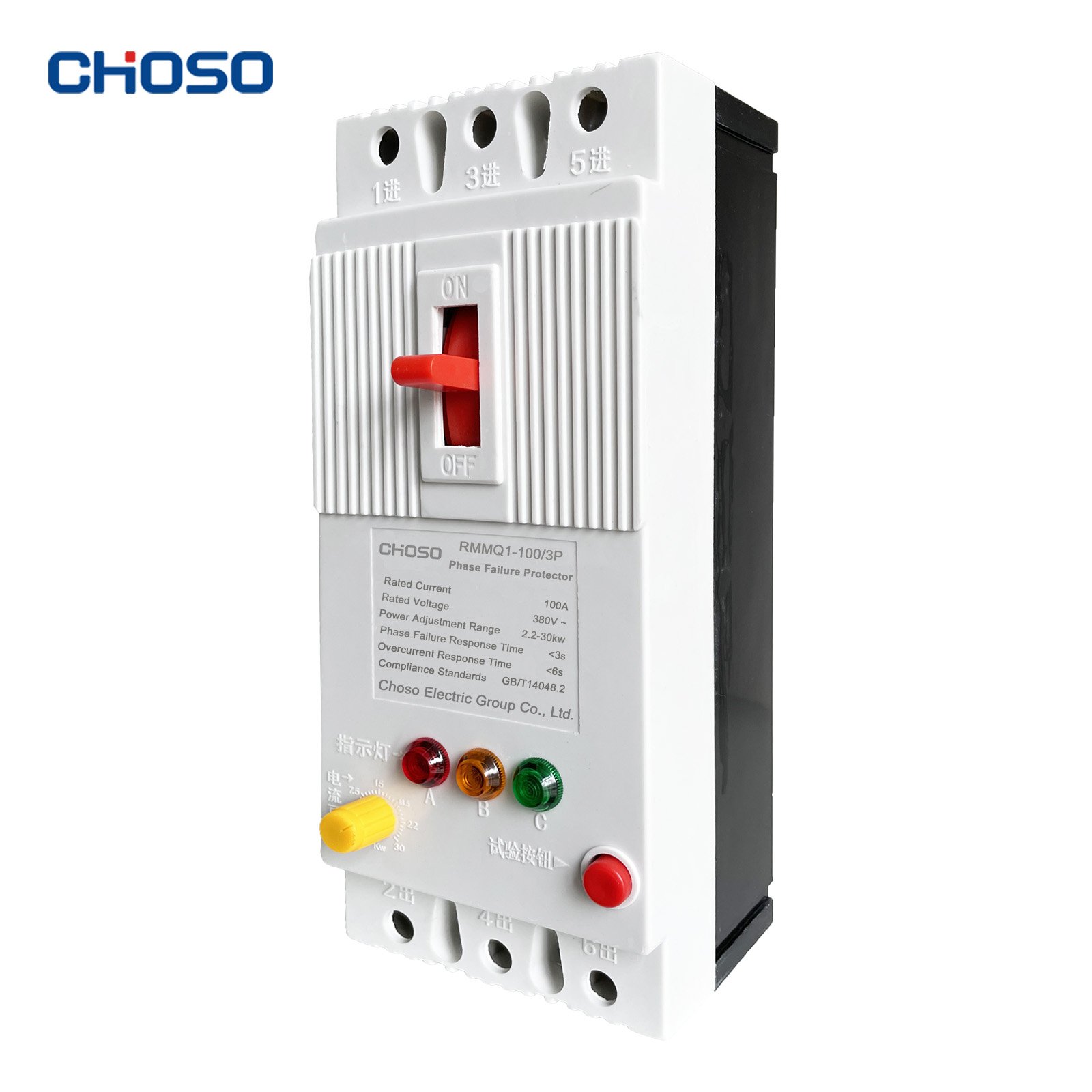

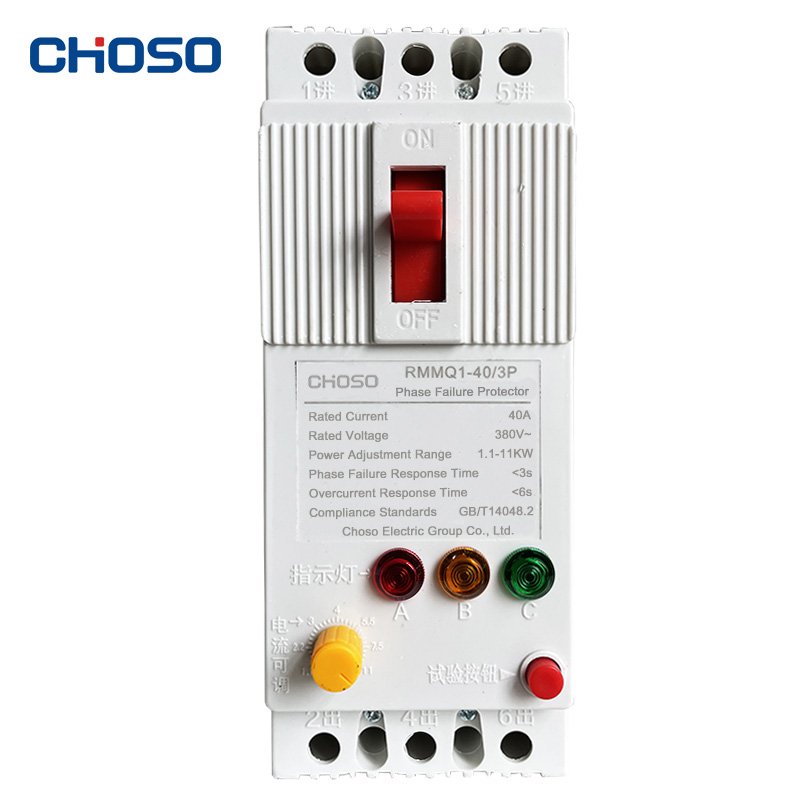

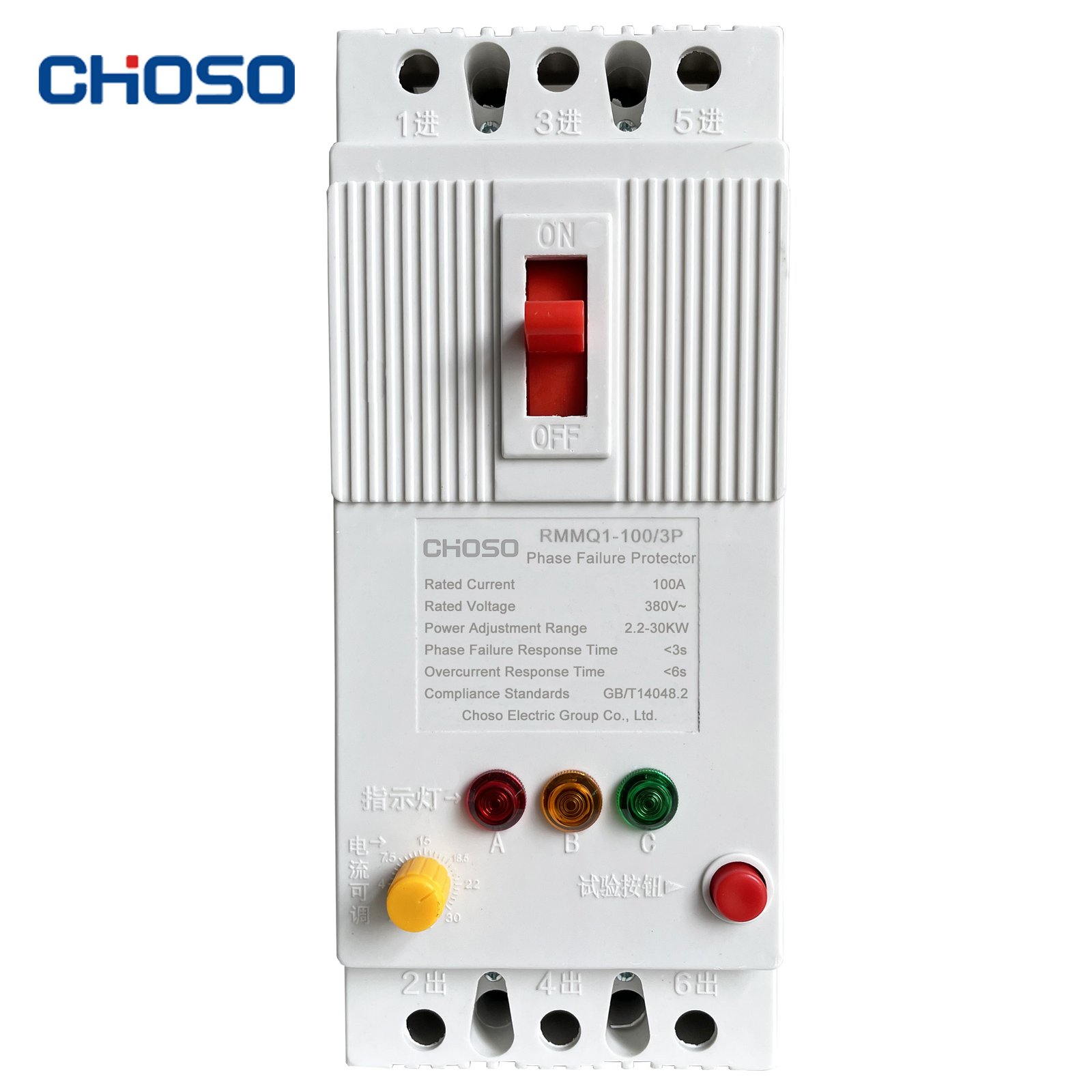

CHOSO RMMQ1 series includes two models RMMQ1-40/3P and RMMQ1-100/3P with rated current of 40A and 100A, suitable for 380V three-phase power supply.
This phase failure protector circuit breaker integrates multiple safety protection functions such as overcurrent, electric leakage, phase loss, three-phase unbalance and locked rotor protection to avoid motor burnout.
It adopts adjustable power design and matches three-phase motors with power ranging from 2.2KW to 30KW.
Equipped with independent test button and three-color indicator lights, users can quickly check fault types and test the protective performance regularly.
DIN rail installation structure is convenient for wiring and assembly, widely used for water pumps, fans and other industrial three-phase motor equipment.
Overcurrent, electric leakage, phase loss, three-phase unbalance and locked rotor protection to avoid motor burnout.
Adjustable power design matches three-phase motors with power ranging from 2.2KW to 30KW.
Equipped with independent test button and three-color indicator lights for quick fault checks.
DIN rail installation structure is convenient for water pumps, fans and industrial equipment.
